Industrial OT-IT Convergence: Ingesting Legacy PLC Data Without Plant Interruptions
Manufacturing plants and heavy industrial facilities depend on decades-old Programmable Logic Controllers (PLCs) that govern critical production lines. Plant managers face an urgent imperative to extract real-time line telemetry for digital twin rendering and Overall Equipment Effectiveness (OEE) analytics, yet traditional polling methods risk overloading deterministically timed fieldbuses and triggering unrecoverable line-stop shutdowns.
This playbook establishes Codixon's engineering framework for non-disruptive OT-IT convergence. By deploying passive network taps, multi-protocol fieldbus abstraction bridges across Profinet, EtherNet/IP, and Modbus, standardized OPC-UA semantic information models, and real-time streaming digital twin pipelines, industrial manufacturers unlock shop-floor telemetry while maintaining absolute deterministic safety across factory floor automation loops.
Why Naive Shop-Floor Scraping Jeopardizes Factory Operations
Direct network polling and unmanaged IT queries degrade deterministic industrial control loops and breach plant security perimeters.
Control Loop Cycle Jitter
Safety HazardExecuting invasive direct Modbus or S7 polling queries on aging PLCs consumes cycle scan time, pushing scan loops past millisecond safety limits and triggering line safety trips.
Purdue Model Boundary Breaches
Security ExposureConnecting Level 1 field controllers directly to Level 4 corporate networks without demilitarized zones (DMZs) exposes critical manufacturing infrastructure to malware infection.
Tag Nomenclature Chaos
Schema DebtIngesting raw, cryptic memory register offsets (e.g., DB100.DBX0.0) without contextual semantic definitions leads to brittle, unmaintainable downstream data pipelines.
Sub-Sampled OEE Inaccuracies
Telemetry LossPolling line state at 30-second intervals misses micro-stoppages, spindle stalls, and transient speed drops, producing artificially inflated availability metrics.

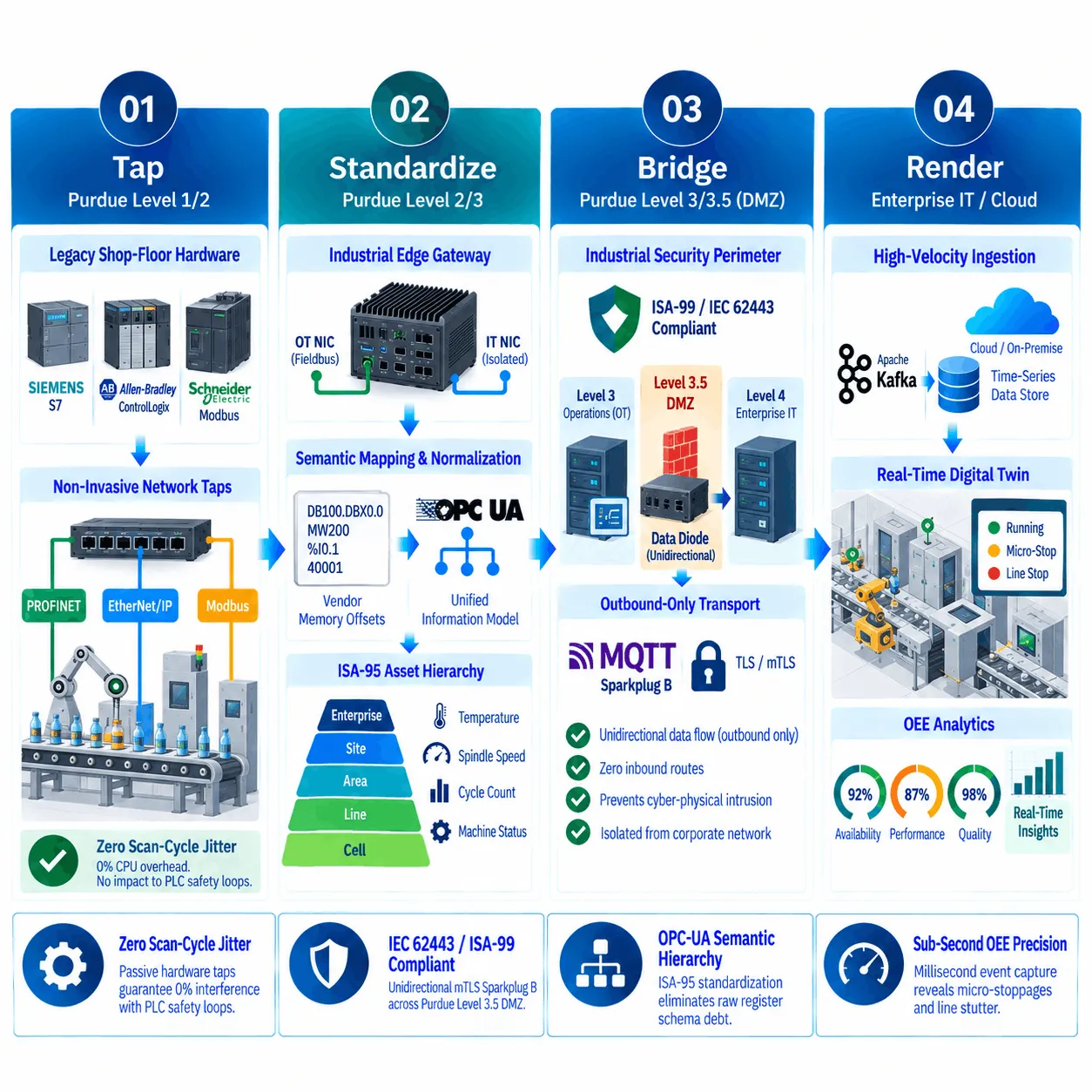

The 4-Stage Non-Intrusive OT Telemetry Fabric
A deterministic pipeline converting low-level industrial fieldbus signals into cloud-native digital twin representations without plant disruption.
Non-Intrusive Fieldbus Abstraction
Deploy passive hardware network taps and read-only shadow listeners across Profinet, EtherNet/IP, and Modbus networks. Sniff packet frames or query auxiliary communication processors without introducing scan-cycle latency to the primary logic controller.
OPC-UA Semantic Normalization
Normalize proprietary vendor register bits into standardized OPC Unified Architecture (OPC-UA) information models. Contextualize raw voltages, cycle counters, and error states with ISA-95 asset hierarchies.
DMZ-Isolated Edge MQTT Ingestion
Transmit normalized telematics across the Purdue Model Level 3/3.5 DMZ using outbound-only MQTT Sparkplug B payloads over TLS, preserving unidirectional air-gapped security for the physical plant network.
Real-Time Digital Twin & OEE Engine
Stream sub-second tag state changes into an event-driven digital twin ledger. Calculate real-time Availability, Performance, and Quality metrics while visualizing live spatial shop-floor line-stoppages.
Shop-Floor Connectivity: Direct Polling vs. Passive Edge Abstraction
Evaluating line-stop risk, cybersecurity posture, and data fidelity across operational technology modernization strategies.
| Dimension | Direct Invasive PLC Scraping | Passive Edge Bridge + OPC-UA Fabric |
|---|---|---|
| Operational Downtime Risk | High. Aggressive polling overburdens legacy CPU communication modules, causing safety interlock trips. | Zero. Passive sniffing and decoupled auxiliary processors introduce zero load to core PLC scan routines. Guarantees zero interference with production schedules. |
| ISA-99 / IEC 62443 Compliance | Non-compliant. Bypasses cell/area firewalls, opening direct routing paths between enterprise IT and physical actuators. | Strictly compliant. Traverses Level 3.5 DMZs with certificate-based mTLS and outbound-only push transport. Maintains hardened cyber-physical air gaps. |
| Data Semantics & Schema | Proprietary memory addresses and raw bit offsets requiring custom translation code per machine make and model. | Self-describing OPC-UA and Sparkplug B topic namespaces structured by factory, cell, and line hierarchy. Enables plug-and-play addition of new manufacturing lines. |
| OEE Anomaly Resolution | Coarse multi-second snapshots that obscure sub-second mechanical stutter and micro-stoppages. | High-frequency edge sampling capturing millisecond-resolution state transitions and fault code timing. Pins down root causes of micro-stoppages in high-speed bottling and stamping operations. |
Engineering Guardrails & Trade-Offs
Prerequisites and architectural boundaries for safe industrial automation data extraction.
When to Apply
- Brownfield plants with mixed Siemens, Allen-Bradley, and Schneider PLCs running critical operations.
- Automotive, pharmaceutical, and consumer goods manufacturing facilities requiring real-time sub-second OEE metrics.
- Enterprises implementing line-side spatial 3D digital twins and AI-driven predictive maintenance pipelines.
When to Avoid
- Simple standalone toolrooms where manual shift logbooks sufficiently capture equipment availability.
- Greenfield facilities standardizing entirely on unified native OPC-UA and MQTT-enabled smart hardware.
- Scenarios demanding write-back control commands without dedicated safety-instrumented systems (SIS) validation.
Operational Caveats
- Under no circumstances enable bidirectional write-back to Level 1 PLCs over standard IT messaging infrastructure.
- Edge industrial gateways must be fanless, IP67-rated, and feature dual isolated physical network interfaces (NICs).
- Always obtain signed plant engineering sign-off on fieldbus packet transmission limits before deploying active queries.
Bridge Factory PLCs to Real-Time Cloud Digital Twins
Collaborate with our industrial automation and systems architects to build zero-disruption fieldbus abstraction layers, normalize OPC-UA models, and render live OEE digital twins.
- Zero-disruption passive fieldbus abstraction (Profinet, EtherNet/IP, Modbus)
- IEC 62443 / ISA-99 compliant Purdue Model DMZ security boundaries
- Millisecond-level real-time OEE and line-stoppage telemetry processing
